S500A:
ESWIN Computing S500A 64-bit functional-safety processor is an energy-efficient 64-bit RISC-V automotive grade CPU IP product.
lich ngoai hang anh
Based on S500, meets ASIL-B automotive safety certification.
It integrates self-developed 9-stage pipeline, dual-issue, in-order architecture.
It supports SPM. A core cluster with up to 4 cores inside.
It supports RVA23-Profile to meet the requirements of Android platform and contains Hypervisor-mode to realize virtualization. kết quả bóng đá trực tuyến hôm nay
It also supports the trusted execution environment to meet the system security requirements. kết quả bóng đá trực tuyến hôm nay
Optional E-Trace/Ntrace for advanced debugging function is supported.
It supports ECC protection to meet hardware security requirements.
It is high energy-efficient application cores and can be used in broad applications, such as AIoT edge computing, network devices, baseband communication, automotive and etc.
Based on S500, meets ASIL-B automotive safety certification.
It integrates self-developed 9-stage pipeline, dual-issue, in-order architecture.
It supports SPM. A core cluster with up to 4 cores inside.
It supports RVA23-Profile to meet the requirements of Android platform and contains Hypervisor-mode to realize virtualization. kết quả bóng đá trực tuyến hôm nay
It also supports the trusted execution environment to meet the system security requirements. kết quả bóng đá trực tuyến hôm nay
Optional E-Trace/Ntrace for advanced debugging function is supported.
It supports ECC protection to meet hardware security requirements.
It is high energy-efficient application cores and can be used in broad applications, such as AIoT edge computing, network devices, baseband communication, automotive and etc.

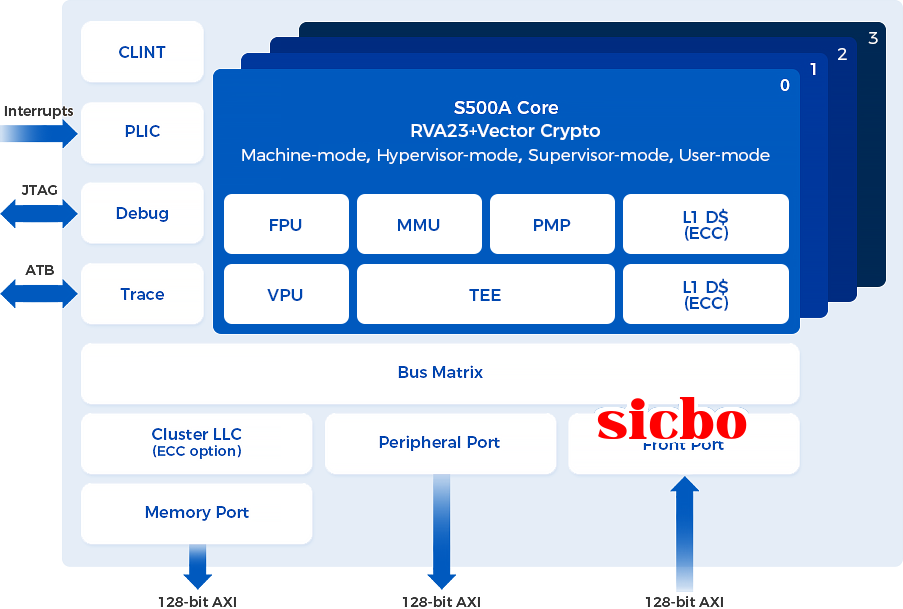

Features
| Features | Description | ||||
| ISA | RVA23+Vector Crypto | ||||
| Multi-core | Single core, dual core, 4 core options | ||||
| Modes | Machine-mode, Hypervisor-mode, Supervisor-mode, User-mode | ||||
| Security | Supports ESWIN TEE solution, with up to 64 PMP regions | ||||
| Crypto | Supports optional scalar, vector hardware encryption and decryption module | ||||
| Pipeline | 9-stage superscalar in-order pipeline, 2-way decode | ||||
| Branch Predictor | L0_BTB， BTB， IJTB，BHT， RAS， Loop Buffer | ||||
| L1 I$ | Size is configurable from 8KB to 64KB. ECC optional | ||||
| L1 D$ | Size is configurable from 8KB to 64KB. ECC optional | ||||
| Cluster LLC | Size is configurable from 256KB to 4MB. ECC optional | ||||
| MMU | SV39，ITLB，DTLB | ||||
| Interrupt | CLINT，PLIC | ||||
| Debug |
Debug module: supports JTAG
Trace module: supports RISC-V standard E-Trace/ N-Trace |
||||
| Bus Interface |
1.Memory Port: 128–bit AXI master interface
2.Peripheral Port: 128-bit AXI master interface 3.Front port : 128-bit AXI slave interface |
||||
| Vector Extension | Supports RVV1.0 | ||||
| CoreMark（CoreMarks/MHz） | 6.27 | ||||
| Dhrystone-Legla（DMIPS/MHz） | 2.90 | ||||
